Section Shape: | Round | Certification: | ISO |
Galvanized: | Hot Dip Galvanized | Application: | IMC Conduit |
Size Range: | 1/2"-4" | ||
High Light: | imc conduit,imc conduit fittings |

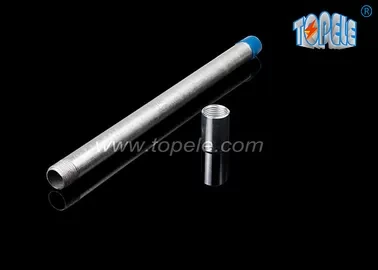

IMC conduit/galvanized imc conduit /imc steel pipe , IMC Conduit And Fittings With 2 Hole Straps
Descrition:
ANSI C80.6 Electrical Pre-galvanized /Hot-dipped Galvanized IMC Conduit /IMC PIPE/IMC TUBO
/RIGID CONDUIT
IMC is short for Intermediate Metal Conduit , It isa rigid steel electrical conduit lighter than another rigid conduit. It is designed to protect cables. It does the work of a similar conduit, galvanized conduit (GRC), but with much less weight and thickness size. By using IMC in areas allowed, but eliminae the need for a heavier wall conduit.
IMC has other advantage over GRC. It has a large interior diameter than Galvanized Rigid Conduit and the smoother interrior of the pipe allows for easier wire pulling.
IMC is introduced by TOPELE , manufacturing in accordance with standard ANSI C.80.6. It is actually more rigid than GRC in using. Our IMC conduit is been used in industrial and commercial buildings.
· TOPELE BRAND IMC CONDUIT Protect insulated electrical conductors and cables
· Galvanized steel construction provides shielding from magnetic fields and protection from impact damage
and crushing
· Electroplated couplings prevent zinc build-up
· Designed for use with threaded connections
.Hot galvanized exterior to increase corrosion resistance and protect against white rust
· Meets CSA safety standard
· Description: 1/2"-4" IMC CONDUIT X 10'
· Brand Name: TOPELE
· Length : 10 ft.
· Material : Galvanized steel / Hot-dipped Galvanized
· Size: from 1/2" to 6 "
Key words: IMC CONDUIT, IMC PIPE, IMC TUBE, IMC TUBO RIGID CONDUIT, RIGID PIPE,RIGID TUBE,
RMC CONDUIT
Applications:
TOPELE .IMC is resistant to impact and is easy to cut, bend and join for smooth, continuous raceways,IMC is as strong, lighter in weight, and less expensive than Rigid. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This IMC CONDUIT is made of
Pre-galvanized steel and has an organic coating inside.
IMC Conduit provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields
and features electroplated couplings to resist buildup of zinc on the threads.
Specifications:
nominal diameter |
external diameter |
thickness of wall |
length |
packing |
weight/unit(kg) |
IMC CONDUIT (INTERMEDIATE METAL CONDUIT) |
|||||
1/2" |
20.7mm |
1.98mm |
3.05 |
15pcs/bundle |
2.79 |
3/4" |
26.1mm |
2.1mm |
3.05 |
10pcs/bundle |
3.82 |
1" |
32.8mm |
2.35mm |
3.05 |
8pcs/bundle |
5.38 |
1-1/4" |
41.6mm |
2.42mm |
3.05 |
5pcs/bundle |
7.13 |
1-1/2" |
47.8mm |
2.54mm |
3.05 |
5pcs/bundle |
8.64 |
2" |
59.9mm |
2.67mm |
3.05 |
4pcs/bundle |
11.50 |
2-1/2" |
72.6mm |
3.81mm |
3 |
1pcs/bundle |
19.10 |
3" |
88.3mm |
3.81mm |
3 |
1pc |
23.45 |
3-1/2" |
100.9mm |
3.81mm |
3 |
1pc |
26.95 |
4" |
113.4mm |
3.81mm |
3 |
1pc |
30.42 |
nominal diameter |
external diameter |
thickness of wall |
length |
packing |
weight/unit(kg) |
IMC thin conduit (INTERMEDIATE METAL CONDUIT) |
|||||
1/2" |
20.7mm |
1.78mm |
3.05 |
15pcs/bundle |
2.53 |
3/4" |
26.1mm |
1.91mm |
3.05 |
10pcs/bundle |
3.50 |
1" |
32.8mm |
2.16mm |
3.05 |
8pcs/bundle |
4.97 |
1-1/4" |
41.6mm |
2.16mm |
3.05 |
5pcs/bundle |
6.41 |
1-1/2" |
47.8mm |
2.29mm |
3.05 |
5pcs/bundle |
7.84 |
2" |
59.9mm |
2.41mm |
3.05 |
4pcs/bundle |
10.43 |
Competitive Advantage:
1/2”-4” IMC Conduit/IMC PIPE/IMC TUBO/Rigid Conduit ANSI C80.6
+Quick Delivery: 15days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval+Best Service: fast delivery, strong package, good price, timely
and effective communication
+Powerful Solution: fast and effective solution to problem
