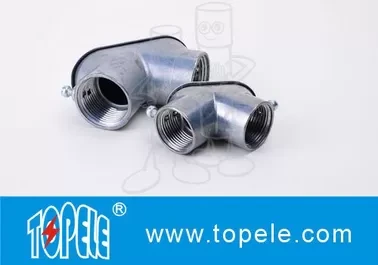

EMT Conduit And Fittings Zinc Die Cast Set-screw EMT Pull Elbows With Gasket
| Product Name: | EMT Conduit Fittings | Material: | Zinc Die Cast |
| Application: | Electrical Raceway | Type: | EMT TO EMT,EMT TO BOX |
| Size: | 0.5 Inch-4 Inch | ||
| High Light: | explosion proof conduit fittings,electrical conduits and fittings |
||
EMT Conduit And Fittings Zinc Die Cast Set-screw EMT Pull Elbows With Gasket
Description:
1.Material: Zinc die cast
2.Type: EMT TO EMT
EMT TO BOX
3.Size: 1/2"-2"
Applications:
These set-screw EMT pull elbows are used when 90° turns are needed in conduits and when wires must be pulled through elbows before making the turn into the electrical junction box or enclosure.
Field Names: Pull elbow, EMT handy ells, EMT set-screws ells, Jakes, EMT Jakes.
Material: Die-cast zinc
Specifications:
|
PEB50 |
1/2" |
|
PEB75 |
3/4" |
|
PEB100 |
1" |
|
PEB125 |
1-1/4" |
|
PEB150 |
1-1/2" |
|
PEB200 |
2" |
Competitive Advantage:
TOPELE’S set-screw pull elbows come ready with a gasket and cover that seals out dirt, dust and moisture. This removable gasket and cover allow for wires to be pulled and fed back into pipes changing the direction as they enter boxes or enclosures. The locknut feature on TOPELE’S pull elbows secures the connection.
