Product Details:
Payment & Shipping Terms:
|
Material: | Q195 Steel | Surface Treatment: | Pre-galvanized / Hot Dip Galvanized |
---|---|---|---|
Size: | 1/2“- 4“ | Standard: | ANSI C80.3 |
Type: | Welded | Package: | 10-50 Pcs/ Bundle |
Highlight: | explosion proof conduit fittings,electrical conduits and fittings |

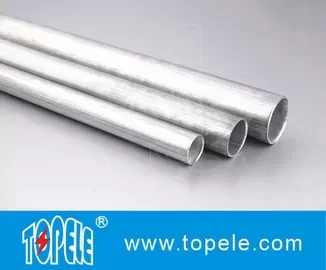

EMT Conduit And Fittings Carbon Steel Galvanized Tube , Electrical Metallic Tubing
Description:
Electrical metallic tubing (EMT), sometimes called thin-wall, is commonly used instead of galvanized rigid conduit (GRC), as it is less costly and lighter than GRC.
Tade Size : from 1/2” to 2”
Length: 3050mm or according to customer’s requirement
Surface finished: Pre-Galvanized or Hot dip galvanized(HDG).
Material : carbon steel coil
Package: emt conduits tied into small bundles with steel straps, then covers with white plastic bag.
Brand: TOPELE
Market: USA, Panama, Peru, Venezuela, Iraq, Ecuador,Colombia.
Applications:
The EMT pipe is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT pipe is made of an unthreaded galvanized steel and has an organic coating inside.
An unthreaded thin-wall raceway of circular cross-section designed for the phycical protection and routing of conductors and enables for use as an equipment grounding conductor when installed utilizing appropriate fitting.
Specifications:
nominal diameter |
external diameter |
thickness of wall |
length |
packing |
weight/unit(kg) |
EMT Tube - thin wall thickness pipe |
|
|
|
||
1/2" |
17.93mm |
0.85mm |
3.05m |
20pcs/bundle |
1.092 |
3/4" |
23.42mm |
1mm |
3.05m |
15pcs/bundle |
1.686 |
1" |
29.54mm |
1.1mm |
3.05m |
10pcs/bundle |
2.353 |
1-1/4" |
38.35mm |
1.30mm |
3.05m |
5pcs/bundle |
3.623 |
1-1/2" |
44.2mm |
1.30mm |
3.05m |
5pcs/bundle |
4.195 |
2" |
55.8mm |
1.40mm |
3.05m |
5pcs/bundle |
5.728 |
Competitive Advantage:
+Quick Delivery: 15days for one 20ft container. Our located in hangzhou, which is close to ningbo port and near to shanghai port, it is good for shipping and with cheap shipping cost.
+Competitive Price: as we control cost well.
+ Good Quality: ISO certificate approval
+Best Service: gurantee the quality for 1 year, no allowance in the weight.
