Malleable Iron Pipe Clamp , IMC Conduit And Fittings One Hole Conduit Strap
| High Light: | explosion proof conduit fittings,imc conduit fittings |
||

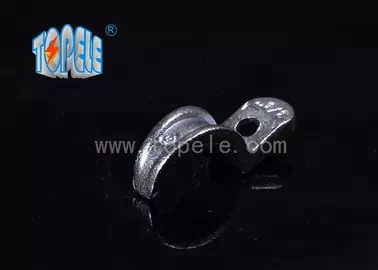

Malleable Iron Pipe Clamp , IMC Conduit And Fittings One Hole Conduit Strap
Description:
The One Hole Malleaable Iron Pipe Strap is Made with Zinc Electroplated Malleaable Iron, to Support and Securely Fasten Rigid Metal Conduit and Intermediate Metal Conduit to the Supporting Surface.
Brand Name: Topele
Rigid Strap With One Hole - Malleable Iron
Material: Malleable Iron
Trade Size: 1/2in, 3/4in, 1in, 1-1/4in, 1-1/2in 2in
Type: Pipe Straps and Spacer
Used on : Rigid Metal Conduit / IMC pipe
Features: High Reinforcing Ribs on Each Side Increasing Strength, Reduce Weight.
Applications:
Used to provide space between rigid conduit or IMC and mounting surface. Can be used with back clamp.
Specifications:
| Trae Size | Dimensions in Inches/Millimeters | Recommended Bold Diameter D | Weight Libs/Kgs Per 100 | ||
| A | B | C | |||
| 1/2 | 1.00/25.4 | 0.75/19.1 | 0.63/16.0 | 0.25/6.4 | 6.00/2.72 |
| 3/4 | 1.19/30.2 | 1.22/31.0 | 0.75/19.1 | 0.25/6.4 | 8.00/3.63 |
| 1 | 1.38/35.1 | 1.5/38/1 | 0.88/22.4 | 0.25/6.4 | 14.00/6.35 |
|
1-1/4 |
1.63/41.4 | 1.81/46.0 | 0.88/22.4 | 0.38/9,7 | 21.00/9.53 |
| 1-1/2 | 1.81/46.0 | 2.13/54.1 | 0.94/23.9 | 0.38/9,7 | 27.00/12.25 |
| 2 | 2.31/58.7 | 2.63/66.8 | 1.06/26.9 | 0.50/12.7 | 48.0/21.77 |
Advantage:
MOQ: Small quantity is accepted.
Location: Our company are near to ningbo port and shanghai port, good for shipping arrangement.
Package: Up to cutomer's requirement.
