Product Details:
Payment & Shipping Terms:
|
| Material: | Malleable Iron Grade 32510 | Surface Treatment: | EG/HDG /PLN |
|---|---|---|---|
| Items Size: | 1/2-4 | Use: | Sued To Provide Space Between Rigid Conduit Or IMC And Mouning Surface |
| Highlight: | explosion proof conduit fittings,imc conduit fittings |
||

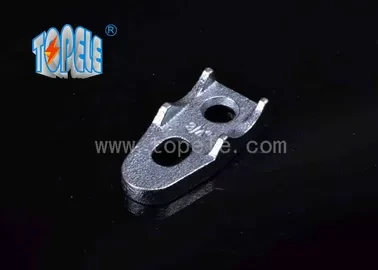

Hot Dip Galvanized pipe backs IMC Conduit And Fittings , Malleable Iron Rigid Clamp Backs
Description
Brand Name: TOPELE
Material: Malleable Iron
Trade Size: 1/2 inch to 2 inch
Type: Pipe Strap and Spacer
Used on: EMT conduit/ Heavy Wall Conduit
Spacer type: Conduit Clamp-Back
Applications:
Malleable Iron Pipe Clamps For use with straps to permit space between the conduit andthe mounting surface .
Use of clamp backs in outdoor locations can prevent the buildup of snow and rain between the conduit and the mounting surface.
Specifications:
| Cat# | Trade Size | Demensions in Inchs/Millimeters | Recommended Bold Diameter D | Weight Lbs/Kgs Per 100 | ||
| A | B | C | ||||
| CB-50 | 1/2 | 2.44/62.0 | 1.06/26.9 | 0.44/11.2 | 0.25/6.4 | 9.00/4.08 |
| CB-75 | 3/4 | 2.5/63.5 | 1.13/28.7 | 0.5/12.7 | 0.25/6.4 | 11.00/5.00 |
| CB-100 | 1 | 3.19/81.0 | 1.31/33.3 | 0.56/14.2 | 0.25/6.4 | 18.00/8.16 |
| CB-125 | 1-1/4 | 3.69/93.7 | 1.44/36.6 | 0.75/19.1 | 0.38/9.7 | 24.00/10.89 |
| CB-150 | 1-1/2 | 3.94/100.1 | 1.56/39.6 | 0.81/20.6 | 0.38/9.7 | 32.00/14.51 |
| CB-200 | 2 | 5.31/130.3 | 2.00/50.8 | 0.75/19.1 | 0.50/12.7 | 54.00/24.49 |
Advantage:
Topele’s rigid conduit strap design allows the installer to easily position the strap before mounting pipes on walls. Additionally, the oversized bolt-hole design makes conduit alignment with box knockout quick and easy.
