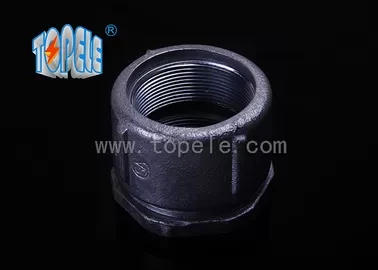

Malleable Iron Three Piece Couplings , IMC Conduit And Fittings For Rigid Conduits / IMC Conduits
Description:
Three Piece Rigid Conduit Coupling:
1.Standards: ANSI C80.1
2.Trade size: 1/2"-2"
3.Material: Malleable Iron
5.Thread: Precise and clear straight NPS BY CNC.
6. Standard Package: Carton
7.Thread Type: NPT
Field Names: Rigid couplings, threaded rigid couplings, heavy wall couplings
Features:
All Malleable Construction insures mechanical protection of the raceway.
All components are Zinc electro plated for corrosion protection.
Applications:
Three piece couplings are used to connect threaded rigid or IMC conduits that are not able to be turned. Three piece couplings provide concrete tight connections.
Specifications:
A=Overall Length, B= O.D. BODY, C= I.D.BODY. D=Thread size
Cat# | Trade Size | A | B | C | D THD. SPEC |
RCTP-50 | 1/2" | 1-3/32" | 1-7/32" | 49/64" | 1/2"-14 NPT |
RCTP-75 | 3/4" | 1-1/8" | 1-7/16" | 31/32" | 3/4"-14 NPT |
RCTP-100 | 1" | 1-3/8" | 1-3/4" | 1-7/32" | 1"-11-1/2" NPT |
RCTP-125 | 1-1/4" | 1-11/16" | 2-5/32" | 1-9/16" | 1-1/4"-11-1/2 NPT |
RCTP-150 | 1-1/2" | 2-17/64" | 2-3/4" | 1-13/16" | 1-1/2"-11-1/2 NPT |
RCTP-200 | 2" | 2-13/32" | 3-3/8" | 2-9/32" | 1"-11/1/2 NPT |
Competitive Advantage:
TOPELE’S versatile threaded design works with all standard threaded connectors.Heavy-gauge steel construction maintains mechanical protection and solid grounding of one conduit to another.
