Unistrut Channel 3/4", 1 - 1/4" Heavy Duty Cast Steel Malleable Iron Channel Beam Clamps
| High Light: | strut pipe clamp,stainless steel unistrut |
||
Unistrut Channel 3/4", 1 - 1/4" Heavy Duty Cast Steel Malleable Iron Channel Beam Clamps

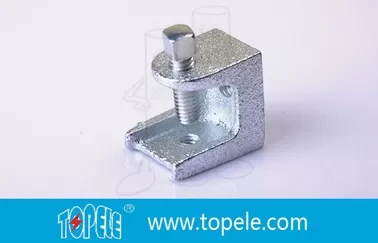

Heavy Duty cast steel Beam Clamps
Open mouth: 3/4", 1-1/4"
Packing: bulk in cartons
Item: 3/8",1/2",3/4",5/8",7/8", M6,M8,M10,M12
Material: Malleable Iron, Black
Field Names:
reversible beam clamps, top beam clamps, wide mouth beam clamps, plumbers clamps.
Applications:
These reversible beam clamps are used when drop-rod length must be adjusted to accommodate the field installation finished height.For attachment to structural shapes requiring wider throat especially under roof with bar joist construction. This clamp may be used with the set screw in the up or down position.
Specifications:
Part number | Jaw | Size | Std. |
JFC-1420 | 3/4” | 1/4-20 | 50 |
JFC-3816 | 3/4” | 3/8-16 | 25 |
JFC-1213 | 3/4” | 1/2-13 | 25 |
JFC-5811 | 7/8” | 5/8-11 | 25 |
JFC-3410 | 1” | 3/4-10 | 25 |
MFC-3816 | 1-1/4” | 3/8-16 | 25 |
MFC-1213 | 1-1/4” | 1/2-13 | 25 |
MFC-5811 | 1-3/8” | 5/8-11 | 25 |
MFC-3410 | 1-3/8” | 3/4-10 | 25 |
Advantage:
Topele’s mounting holes are fully threaded through the body allowing drop rod length adjustment. Their hardened cup point set screws come with jam nuts to prevent vibratory loosening in industrial settings. Additionally, clamps come in both short or wide jaw openings for various beam flange thickness.
Competitive Advantage:
+Quick Delivery: 30 days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
