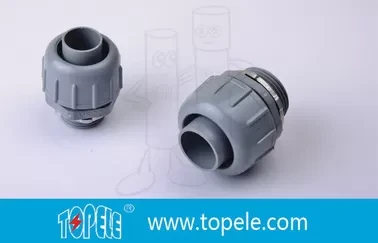

PVC Plastic Flexible Conduit And Fittings Non Metallic Liquid Tight Connectors Straight
| Available Sizes: | 3/8"-4" | Certification: | UL |
| Material: | PVC | Temperature: | -10°-70° |
| Type: | Liquid Tight Conduit Fittings | Delivery: | Shipped In 30 Days After Payment |
| High Light: | flexible metal conduit fittings,corrugated flexible conduit |
||
PVC Plastic Flexible Conduit And Fittings Non Metallic Liquid Tight Connectors Straight
Quick Detail:
Liquid-tight Conduit Connectors-Straight
Material: PVC Plastic
SIZE: 3/8”—2”
Applications:
These nonmetallic straight connectors are used in both wet and dry locations when conduits and fittings are not subjected to physical damage. They are used to terminate andseal Liquid -Tight Flexible Nonmetallic Type B Conduit toeither an oil-tight, liquid-tight or rain-tight box or enclosure.
Specifications:
|
Part number |
Size
|
Std. Pkg. |
|
SSTC-38 |
3/8” |
20 |
|
SSTC-50 |
1/2” |
20 |
|
SSTC-75 |
3/4” |
20 |
|
SSTC-100 |
1” |
10 |
|
SSTC-125 |
1-1/4” |
10 |
|
SSTC-150 |
1-1/2” |
5 |
|
SSTC-200 |
2” |
5 |
Competitive Advantage:
Topele’s gray, nonmetallic, PVC plastic construction provides superior corrosion resistance and flexibility. It is designed to withstand harsh weather and extreme temperature changes. Each connector comes standard with a neoprene O-ring and locknut.
3/4'' non metallic (pvc) liquid tight connectors straight
1.Model number: LTC
2. Size: 3/8"-4"
3. Material: PVC, Nylon
4. Locknut Material: Steel
5. Application: For use with non-metallic Type B liquidtight conduit to terminate and seal conduit to liquidtight, oiltight, or raintight box or enclosure
