Silvery Electrical Swivel Steel Pipe Clamps UL Standard 1/2''-8''
| Material: | Steel, Galvanised | Color: | Silvery |
| Standard: | UL | Size: | 1/2"-4" |
| Package: | Carton | Quality: | Quality Passed UL Cetification,Report Reference E489690 |
| High Light: | Steel Pipe Clamps UL Standard,Silvery Steel Pipe Clamps,Swivel Steel Pipe Clamps |
||
UL Standard Silvery Electrical Swivel Steel Pipe Clamps 1/2''-8''
UL Standard Steel Electrical Swivel Pipe Clamp Swivel Loop
Description:

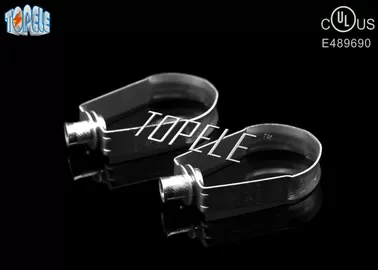

Swivel Loop Hanger
This galvanized steel loop hanger is recommended for suspension of stationary noninsulated pipelines. It features a retained insert nut that helps to keep the loop hanger and insert nut together.
Surface finish:galvanized
Size: 1/2"-8"
Quality:Quality passed UL cetification,Report reference E489690
Field Names: swivel ring hanger, sprinkler hanger, sprinkler nut clamp
General:
1) Electro galvanized Springier pipe hanger with thickness from 1.00mm to 2.00mm
2) Five to eight inch also available if ordered, but none-UL listed,the darcromat is the acid liquid testing more than 200 hours dip
3) As the clamp for emt conduit pipe to thread rod
4) Corresponding Code: RL-860
5) Stainless material conduit hanger available
Applications:
For fastening emt conduit tubes to threaded rods
Each strut clamp can be directly stamped with the customer's brand.
Screws and nuts are supplied as a kit.
Standard thickness is 1.2 mm, available in 2.00 mm.
Specifications:
| CAT# | SIZE |
| SLH-50 | 1/2" |
| SLH-75 | 3/4" |
| SLH-100 | 1" |
| SLH-125 | 1-1/4" |
| SLH-150 | 1-1/2" |
| SLH-200 | 2" |
| SLH-300 | 3" |
| SLH-400 | 4" |
| SLH-500 | 5" |
| SLH-600 | 6" |
| SLH-800 | 8" |
Swivel Pipe Clamp hangers are used for the fixing of tunnels, culverts, pipes and other roofs, or for hanging electrical cables.
Installation: The hanger load nut clevis must be tightened securely to ensure proper performance of the hanger. This clevis hanger may have punched and formed holes in some dimensions. These holes are for manufacturing purposes only and do not affect the structural integrity or load carrying capacity of these hangers.
