Galvanized Steel Electrical Flexible Metal Conduit PVC Coated
| Length: | 100m | Thickness: | 2mm |
| Material: | PA PP PE, PA | Specification: | 1/4" |
| Attribute:: | Flame-resistant | Surface Treatment:: | Coated Tin |
| High Light: | PVC Coated Electrical Flexible Metal Conduit,Galvanized Steel Flexible Metal Conduit,1/4" Flexible Metal Conduit |
||

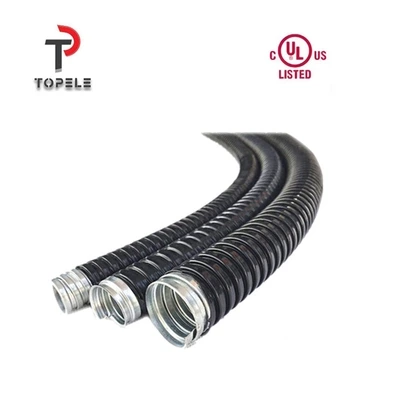

Galvanized Steel Electrical Cable Flexible Metal Conduit PVC Coated
PVC Coated Galvanized Steel Electrical Cable Flexible Metal Pipe Conduit
Quick Details
Place of Origin: Zhejiang, China
Brand Name:TOPELE
Material:PA PP PE, PA
Thickness:2mm
Standard:Standard
Attribute:flame-resistant
Surface treatment:Coated Tin
Color:White Black Grey
Size:1/4" 3/8" 1/2" 3/4"
Certificate:CE ISO9001..
Construction : Helically Wound Square lock Flexible Conduit oversheath with PVC. The Conduit Will be Uniform in diameter through our it's length. The internal surface of the conduit will be free from burrs & sharp edges.
Specification :
High mechanical strength
Low smoke density
Temperature range: -15°C to +70°C
IP rating: Ip65
Application :
Public & Commercial buildings
Outdoor installations.
Used as mechanical protection for insulated electrical cables and wires that are functional in normal atmospheric temperature
Under floor applications for computer/floor boxes
Used for connecting machines to controls
Elevators, Metro Stations, CCTV Camera etc.
Most suitable for tight-spot installation and in places where certain water tightness is required
| Product Name | China supplier 1/5" to 2" plastic flexible corrugated pipes |
| Material | PP PE PA |
| Color | Black,blue,yellow or costmoize |
| Application | Wire-protection hoses for room decoration.Liquid, oil transmission.Wire-protection and oil hoses for antoes refit. |
| Characteristics |
1) Insulating flexible conduits, glands and accessories are suitable for providing mechanical protection and supplementary insulation to existing legacy cabling in accordance .
2) Can be opened and closed again in longitudinal direction any time. 3) Easy installation. 4) Trouble-free retrofitting. |
