| High Light: | GI BS4568 Conduit Class 3,Q195 BS4568 Conduit,BS4568 Conduit For Lighting Circuits | ||
Basic Info.
Model NO.
BS31 Conduit
Standard
BS31-1940
Transport Package
Woven Bag
Trademark
TOPELE
Origin
China
Production Capacity
1000000 PCS/Month
Product Description

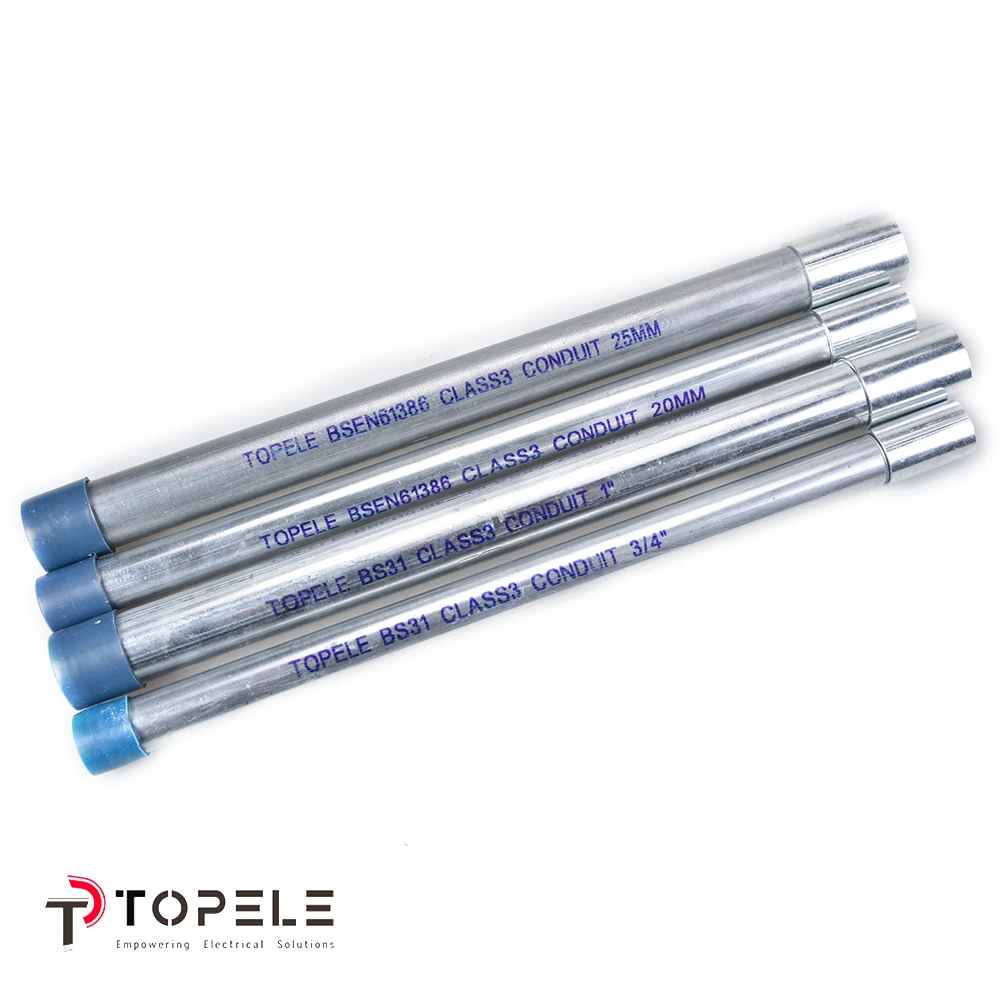

High Quality Of Class 3 /4 Standard BS31 Conduit
Specifications:
![High Quality of Class 3 /4 Standard BS31 Conduit]()
A Range Of Products:
![High Quality of Class 3 /4 Standard BS31 Conduit]()
![High Quality of Class 3 /4 Standard BS31 Conduit]()
![High Quality of Class 3 /4 Standard BS31 Conduit]()
![High Quality of Class 3 /4 Standard BS31 Conduit]()
![High Quality of Class 3 /4 Standard BS31 Conduit]()
Basic details:
| Material: | Steel |
| Finished: | Pre Galvanized(Class 3)/Hot Dipped Galvanized(Class 4) |
| Color: | Silver |
| Usage: | For protection and routing of electrical wiring |
| Standard: | BS31-1940 |
| Brand Name: | TOPELE |
Specifications:
| Size | Outside Diameter | Wall Thickness (MM) | Length(Meters) | Length Of Thread | Primary Bundle (Pcs) | ||
| MIn | Max | Min | Max | ||||
| Heavy Gauge | |||||||
| 3/4'' | 18.9mm | 19.05mm | 1.60+_0.15 | 3.81 | 11.5mm | 13.5mm | 10 |
| 1'' | 25.2mm | 25.4mm | 1.60+_0.15 | 3.81 | 13.0mm | 15.0mm | 10 |
| 1-1/4'' | 31.5mm | 31.8mm | 1.60+_0.15 | 3.81 | 16.0mm | 18.0mm | 10 |
| 1-1/2'' | 37.8mm | 38.0mm | 1.80+_0.15 | 3.81 | 19.0mm | 22.0mm | 3 |
| 2'' | 50.4mm | 50.6mm | 1.80+_0.15 | 3.81 | 19.0mm | 22.0mm | 3 |
| Light Gauge | |||||||
| 3/4'' | 18.9mm | 19.05mm | 1.60+_0.15 | 3.81 | 13.0mm | 15.0mm | 10 |
| 1'' | 25.2mm | 25.4mm | 1.60+_0.15 | 3.81 | 16.0mm | 18.0mm | 10 |
| 1-1/4'' | 31.5mm | 31.8mm | 1.60+_0.15 | 3.81 | 18.0mm | 20.0mm | 10 |
| 1-1/2'' | 37.8mm | 38.0mm | 1.80+_0.15 | 3.81 | 19.0mm | 22.0mm | 3 |
| 2'' | 50.4mm | 50.6mm | 1.80+_0.15 | 3.81 | 19.0mm | 22.0mm | 3 |
TOPELE BS31 CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This BS31 CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
BS31 CONDUIT provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist build up of zinc on the threads.
BS31 CONDUIT provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist build up of zinc on the threads.
