BSEN61386 Conduit Class 4 Conduit Pre Galvanized Hot dip Galvanized
| Material: | Carbon Steel | Finish: | Pre-Galvanized , Hot Dip Galvanized ( HDG ) |
| Standard: | BS4568:1970/BS31:1940 | Size: | 20mm, 25mm,32mm, 3/4", 1",1-1/4" |
| High Light: | BS4568 Conduit Class 4,BS4568 Conduit Hot dip Galvanized,BS4568 Conduit Pre Galvanized |
||
BS4568 Conduit Class 4 Conduit Supplier From China Supplier
BS4568 Conduit Class 3 Conduit Supplier From China Supplier
Description:
BS4568 1970 Gi Conduit Pre-Galvanized Conduit/ hot dip galvanized Pipe with Good Quality

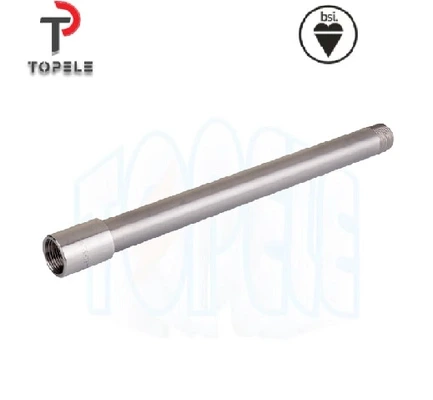

TOPELE BS4568/BS31 conduit
Material: Carbon steel
Finish:Pre-Galvanized , Hot dip Galvanized ( HDG )
Standard: BS4568:1970/BS31:1940
Size: 20mm, 25mm,32mm, 3/4", 1",1-1/4"
Feature:
1) Heavy corrosion protection by Hot-Dip Galvanizing on the exterior and medium corrosion protection by applying and organic coat on the interior surface of the conduit for Class3;
Heavy corrosion protection by Hot-Dip Galvanizing on the exterior and interior surface of the conduit for Class4.
2) Threaded on both ends, one end fitted with coupling and the other protected by plastic end cap.
3) Metric size threading.
4) Offer all kinds of packing.
Dimension and Weight Chart
| Size(mm) | Outer Diameter |
Thinkness (mm) |
Thread Length(mm) | Weight(g/m) | |||
| Min | Max | Min | Max | Min | Max | ||
| 16mm | 15.7mm | 16.0mm | 1.4±0.15 | 11.5mm | 13.5mm | 452g/m | 531g/m |
| 20mm | 19.7mm | 20.0mm | 1.6±0.15 | 13.0mm | 15.0mm | 682g/m | 862g/m |
| 25mm | 24.6mm | 25.0mm | 1.6±0.15 | 16.0mm | 18.0mm | 860g/m | 1095g/m |
| 32mm | 21.6mm | 32.0mm | 1.6±0.15 | 18.0mm | 20.0mm | 1133g/m | 1432g/m |
| 40mm | 39.5mm | 40.0mm | 1.6±0.15 | 19.0mm | 22.0mm | 1.36g/m | 1.52g/m |
| 50mm | 49.5mm | 50.0mm | 1.6±0.15 | 19.0mm | 22.0mm | 1.71g/m |
1.91g/m Â
|
Applications:
TOPELE BS4568 CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This BS4568 CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
BS4568 CONDUIT provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist build up of zinc on the threads.
​Quality inspection before loading:
​​
​​​
