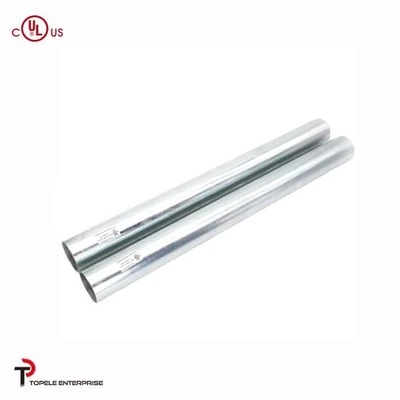

UL797 Gi EMT Electrical Flexible Conduit Pipe Tube

Certification:

ISO

Model Number:

Delivery Time:

15days

Supply Ability:

5000per day

Inquiry

Write a Review

Outside Diameter:	17.93-114.3mm	Length:	3050mm
Finish:	Pre-Galvanized / Hot DIP Galvanized	Thickness:	Standard And Thinner(0.85-2.11mm)
Size:	1/2", 3/4", 1", 1-1/4", 1-1/2", 2"	Brand:	Topele / OEM
High Light:	UL797 emt flexible pipe , EMT flexible conduit pipe , UL797 flexible conduit pipe

Basic Info.

Outside Diameter

17.93-114.3mm

Length

3050mm

Finish

Pre-Galvanized / Hot DIP Galvanized

Thickness

Standard and Thinner(0.85-2.11mm)

Size

1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Brand

Topele / OEM

Standard

UL797/ C80.3

Transport Package

Woven Bag

Specification

1/2"-4"

Trademark

TOPELE/ OEM

Origin

China

HS Code

7306309000

Production Capacity

30*20′ Container /Month

Product Description

UL Standard EMT Conduit Pre-Galvanized EMT Tuberia OEM

Description:

Hot Dipped Galvanized Electrical Steel EMT conduit pipe

EMT conduit pipe is one of the lightest and thinnest threading pipe in American standard. The pipe head has no thread, and it is connected with set screw type connector which is mostly used in indoor decoration

The main markets of EMT are Latin America, South America, America, dubai and other middle eastern countries
Corrosion resistance
long-lasting protection
Interior surface free from defects so that easy to wire pulling
10' lenghts, with special lenght available
steel coupling and connector produced in -house
uniform wall thicknes

Specifications:

Standard: 1/2"-4" EMT CONDUIT X 10' / UL 797 and ANSI C80.3
Brand Name: TOPELE
Color Family : Metallics
Conduit type : Metallic
Type : Conduit
Flexible : No
Length : 10 ft.
Material : Galvanized steel / Hot-dipped Galvanized
Size: from 1/2" to 4 "

Nominal diameter	External diameter	Wall Thickness	Length	Packing	Weight/Unit(kg)
Nominal diameter	External diameter	Wall Thickness	Length	Packing	Weight/Unit(kg)
1. EMT Tube(Electrical metallic tubing) standard pipe
1/2"	17.93mm	1.07mm	3.05m	20pcs/bundle	1.36
3/4"	23.42mm	1.24mm	3.05m	15pcs/bundle	2.07
1"	29.54mm	1.45mm	3.05m	10pcs/bundle	3.06
1-1/4"	38.35mm	1.60mm	3.05m	5pcs/bundle	4.56
1-1/2"	44.2mm	1.65mm	3.05m	5pcs/bundle	5.28
2"	55.8mm	1.65mm	3.05m	5pcs/bundle	6.78
2-1/2"	73.03mm	1.83mm	3.05m	1pcs/bundle	9.8
3"	88.9mm	1.83mm	3.05m	1pc	11.98
3-1/2"	101.6mm	2.11mm	3.05m	1pc	15.79
4"	114.3mm	2.11mm	3.05m	1pc	17.8

Applications:

TOPELE EMT CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT CONDUIT is made of Pre-galvanized steel and has an organic coating inside.

From thickness, TOPELE have standard and thiner for customer choose,the thickness can also be customized according to the customer's requirements.

From the surface treatment, TOPELE have hot dipped Galvanized (HDG) and the Pre- galvanized.

UL797 Gi EMT Electrical Cable Conduit Pipe Tube

Warehouse

Packing
