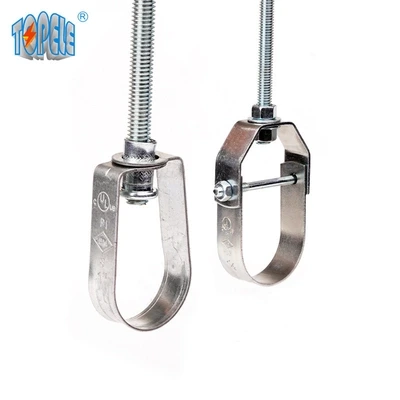

UL Certified Steel Pipe Fittings Of Clamp Clevis Hanger Carbon Steel 1

UL Certified Steel Pipe Fittings Of Clamp Clevis Hanger Carbon Steel 2

UL Certified Steel Pipe Fittings Of Clamp Clevis Hanger Carbon Steel

Certification:

Model Number:

Delivery Time:

15days

Supply Ability:

5000per day

Inquiry

Write a Review

Material:	Carbon Steel	Surface Treatment:	Electro-Galvanized & Copper Plated & Colored Expoxy Plated
Size:	1/2" To 24"	Threaed Standard:	NPT
Brand Name:	TOPELE	Certification:	UL NO.E489690
High Light:	Carbon Steel clevis hanger clamp , UL Certified clevis hanger clamp , UL NO.E489690 clevis hanger

High Quality UL Certified Steel Pipe Fittings of Clamp Clevis Hanger

Basic Info.

Model NO.

TPCLH

Trademark

TOPELE

Origin

China

Production Capacity

100000 PCS Per Month

Product Description

High Quality UL certified Steel Pipe Fittings Of Clamp Clevis Hanger

Basic details:

Material:	Carbon Steel
Surface Treatment:	Electro-Galvanized & Copper Plated & Colored Expoxy Plated
Size:	1/2" to 24"
Threaed Standard:	NPT
Usage:	Suspending non-insulated stationary pipe,also stainless steel pipe,allowing for vertical adjustment
Brand Name:	TOPELE
Certification:	UL NO.E489690

Specifications:

Cat No.	Conduit Size		Φ	Max Load		A	E	d
Cat No.	IN	R	MM	LBS	KG	MM	MM	UNC
TPCLH-050	1/2''	12.5	11.0	610	277	68	36	1/4''
TPCLH-075	3/4''	15.5	11.0	610	277	83	36	1/4''
TPCLH-100	1''	18.5	11.0	610	277	84	42	1/4''
TPCLH-125	1-1/4''	22.5	11.0	610	277	102	45	1/4''
TPCLH-150	1-1/2''	27.0	11.0	610	277	108	50	1/4''
TPCLH-200	2''	32.5	11.0	610	277	122	56	1/4''
TPCLH-250	2-1/2''	39.0	14.2	1130	513	142	80	3/8''
TPCLH-300	3''	47.5	14.2	1130	513	162	78	3/8''
TPCLH-350	3-1/2''	54.5	14.2	1130	513	171	80	3/8''
TPCLH-400	4''	62.0	17.2	1130	513	205	92	3/8''
TPCLH-500	5''	75.5	17.2	1430	649	222	80	1/2''
TPCLH-600	6''	87.7	21.0	1940	880	262	92	1/2''
TPCLH-800	8''	114	23.0	2000	907	316	85	5/8''
TPCLH-1000	10''	142	23.0	3600	1633	392	120	3/4''
TPCLH-1200	12''	168	23.0	3800	1724	457	120	3/4''
TPCLH-1400	14''	180	26.0	4200	1905	511	114	7/8''
TPCLH-1600	16''	205	26.0	4200	1905	557	114	1''
TPCLH-1800	18''	230	29.0	4800	2177	635	135	1-1/8''
TPCLH-2000	20''	255	32.0	4800	2177	699	135	1-1/4''
TPCLH-2400	24''	307	32.0	4800	2177	806	135	1-1/4''

Application:

High Quality UL Certified Steel Pipe Fittings of Clamp Clevis Hanger

Clevis Hanger used in tunnels, culverts, pipes and other roof fixed, or for the suspension wires. Hanger clamps expected to be the use of high-quality carbon steel, the surface of silver-plated white zinc.
