Product introduction

Galvanized Steel BS4568 Conduit / GI PIPE / Electrical Conductors Description:

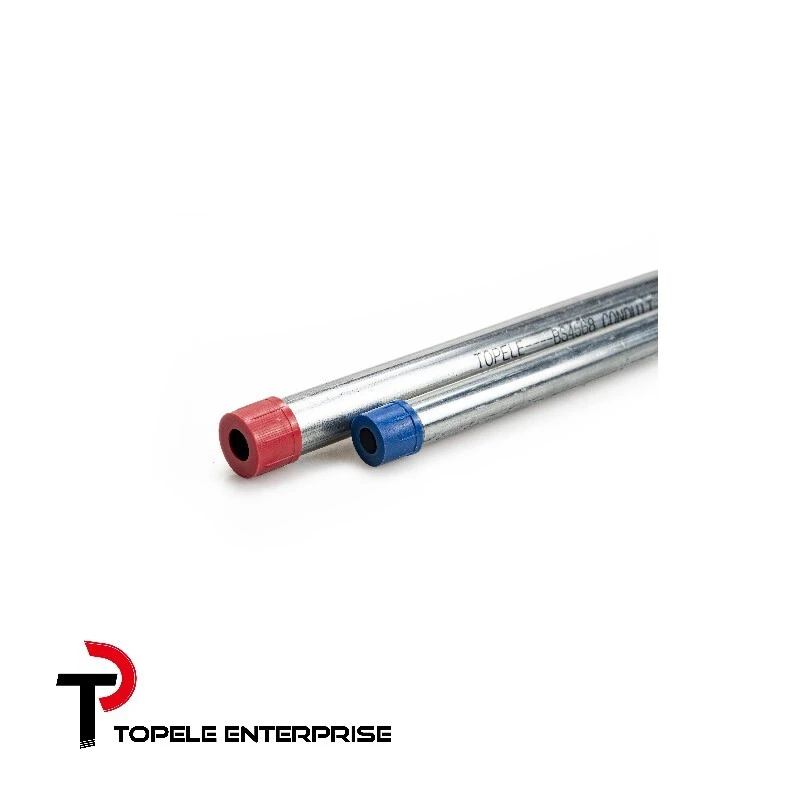

BS4568 CONDUIT with a coupling and a protection blue cap
TOPELE BRAND BS4568 CONDUIT Protect insulated electrical conductors and cables
Galvanized steel construction provides shielding from magnetic fields and protection from impact damage and crushing
Electroplated couplings prevent zinc build-up
Designed for use with threaded connections
Brand Name: TOPELE
Printing words color: blue and red
Length : 3.75 meters. 4.0 meters or according to customer's requirements
Material : Galvanized steel-class 3 / Hot-dipped Galvanized-class 4
Size: 20 mm, 25mm, 32mm

Thickness: 1.3mm---2.0 mm
Filed name: BS4568 CONDUIT,BS4568 TUBE,BS4568 TUBING, BS4568 PIPE, GI PIPE, GI TUBE.
GI TUBING

Packing shipping and payment method

Galvanized Steel BSEN61386 Conduit GI PIPE Electrical Conductors 3

Competitive Advantage

BS4568 CONDUIT
● Quick Delivery: 15days for one 20ft container.
● Competitive Price
● Good Quality: ISO +Best Service: fast delivery, strong package, good price, timely and effective communication
● Powerful Solution: fast and effective solution to problem

Detailed Product Description

Brand Name:	TOPELE	Printing Words Color:	Blue And Red
Material:	Galvanized Steel-class 3 / Hot-dipped Galvanized-class 4	Size:	16 Mm To 50 Mm
Product Name:	BS4568 Conduit	Thickness:	1.3mm---2.0 Mm
High Light:	galvanized rigid conduit, galvanized steel pipe

Application Scenario

TOPELE BS4568 CONDUIT is designed to protect and route cables and conductors. It can be installedeither exposed or concealed. Install it inside or outside using rain-tight fittings. This BS4568 CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
BS4568 CONDUIT provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist build up of zinc on the threads.

Screw in Connector 4

Product Specification

nominal diameter	external diameter	thickness of wall	length	packing	weight/unit(kg)
BS4568-1970 CONDUIT					weight/unit(kg)
16mm	16mm	1.6mm	3.75	10pcs/bundle	2.13
20mm	20mm	1.6mm	3.75	10pcs/bundle	2.72
25mm	25mm	1.6mm	3.75	10pcs/bundle	3.46
32mm	32mm	1.6mm	3.75	10pcs/bundle	4.50

Remark: different thickness is available
