    Type: Plain Or Slotted Strut Channel Size: 41X41MM, 41X21MM
    Thickness: 1.5mm-3.0mm Shape: C Channel
    Surface: Galvanized Used: Support , Strut Channel
    Application: Construction & Building & Support
    High Light:

    slotted strut channel

    ,

    stainless steel unistrut

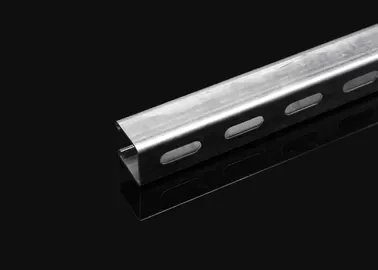

    Hot Dip Glavanized Steel Slotted Strut Channel with ULTo Support Conduits 41X 41MM



    Material Specification

    Length 3 metres,   6 meter,as request
    Tickness 1.5mm,2.0mm,2.5mm,2.75mm,3.0mm,OEM
    Profile 41x41mm, Slotted



    Descrition:



    TOPELE  STRUT CHANNEL

    Type: plain / slotted strut channel

    Size  specification : 41X41MM, 41X21MM

    Finish : Black, Pre-galvanized and Hot Dipped Galvanized

    Thickness : 1.5mm-3.0mm

    Length: 3 meters, other length could be available.

    Field names: Strut, Galvanized strut, strut channel. c channel



    Strut Channel Detailed Specification Information:

    High quality & reasonable Price, no need welding and punching, can use repeatedly, wide usage range, flexible for installation.

    1. Standard thickness: 1.5mm, 2mm, 2.5mm,2.75mm, 3.0mm
    2. Standard length: 2440mm, 3000mm, 5800mm, 6000mm and customized
    3. Other Standard size: 41*21, 41*25, 41*41,41*62,41*72,41*82, back to back, 41*41.41*62,41*123 and so on





    Applications:

    TOPELE SLOTTED STRUT CHANNEL

    1. used to support the steel structure system which can save great manpower cost and install easily without any weldments.

    2.Connected Unistrut channels in different lengths and sizes with all kinds of steel sheet bending acceossries an fasteners

    3.Unistrut  Channel with Bracket The support and restraint brackets are adjustable in 3 directions with Unistrut Channel

    4.is used to support conduits, fixture, and ventilation systems from

    structural beams and other support members.





    strut Channel Surface Finish:

    ♦ Powder coated- BS-6497-1984, between 60 and 85 microns thick
    ♦ Hot Dipped Galvanized-for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
    ♦ Acid Washing or Electrolytic Polishing- for stainless cable basket tray use





    Strut Channel System Advantages :

    ♥ High strength to cost ratio

    ♥ Completely adjustable

    ♥ No welding or drilling required

    ♥ Strut is re-usable

    ♥ One-inventory adaptable to many jobs

    ♥ Saw and wrench are the only tools needed
