Material:: | Galvanized Steel | Thickness: | 0.7mm-1.6mm |
Size:: | 4"*2"*1-1/2" | Knockouts:: | Side:(6)1/2", 2(3/4"), Bottom:(2)1/2", (1) 3/4" |
High Light: | outlet box covers,electrical box covers |

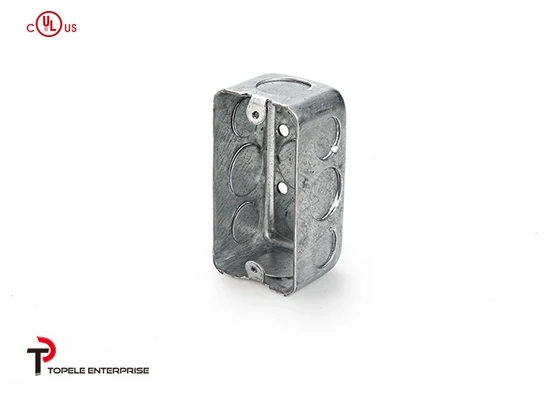

TOPELE 4”X2”, 1 -1/2' Deep Rectangular Wiring Handy Utility Boxes, Six 1/2" Knockouts
Description:
TOPELE 4”x2” Electrical Conduit Handy Box
•Type: Drawn
•Depth: 1-7/8" or 1-1/2"
•For surface-mounted wiring
•Made of Pre-Galvanized steel
•Thickness:0.6mm, 0.8mm,1.0mm,1.2mm,1.5mm,1.6mm
•Square box and Octagonal box are also available
•Dimension
4''*2''*1-1/2''Deep 1/2'',3/4'',1/2&3/4''
4''*4''*1-7/8''Deep 1/2'', 3/4'', 1/2''&3/4''
•Thickness:0.6mm, 0.8mm,1.0mm, 1.2mm, 1.5mm,1.6mm
Applications:
TOPELE ELECTRICAL CONDUIT OUTLET BOX
These handy utility boxes are used for convenience outlets, switches and small junction boxes in exposed work applications. They are great for appliances and machinery. Extension rings are available to provide a means of adding additional wire capacity or to serve as outlet boxes for surface conduits.
Field Names: Handy box, utility box, 2x4 box, switch box,device box, handy box extension ring, utility box
extension ring.
Specifications:
TOPELE Ractangular conduit box
CAT# |
KO. SIZE |
DESCRIPTION |
THICKNESS |
1-1/2'' Deep |
|||
TP58361-1/2” |
1/2'' |
Galvanized Steel |
0.6/0.8/1.0/1.2/1.5/1.6mm |
TP58361-3/4” |
3/4'' |
Galvanized Steel |
0.6/0.8/1.0/1.2/1.5/1.6mm |
TP58361-1/2”&3/4” |
1/2''&3/4'' |
Galvanized Steel |
0.6/0.8/1.0/1.2/1.5/1.6mm |
1-7/8'' Deep |
|||
TP59361-1/2” |
1/2'' |
Galvanized Steel |
0.6/0.8/1.0/1.2/1.5/1.6mm |
TP59361-3/4” |
3/4'' |
Galvanized Steel |
0.6/0.8/1.0/1.2/1.5/1.6mm |
TP59361-1/2”&3/4” |
1/2''&3/4'' |
Galvanized Steel |
0.6/0.8/1.0/1.2/1.5/1.6mm |
Competitive Advantage:
TOPELE Galvanized Steel Outlet Box
+Quick Delivery: 20days for one 20ft container.
+Competitive Price
+ Good Quality: ISO certificate approval
+Best Service: fast delivery, strong package, good price, timely and effective communication
+Powerful Solution: fast and effective solution to problem
Warranty Description:
TOPELE warrants that its products will be free from defects in material and workmanship for a period of two years from the date of shipment
