Product Details:
Payment & Shipping Terms:
|
Brand Name: | TOPELE | Material: | Steel |
---|---|---|---|
Standard: | UL | Size: | Negotiation |
Type: | Square | ||
Highlight: | octagon box cover,outlet box covers |

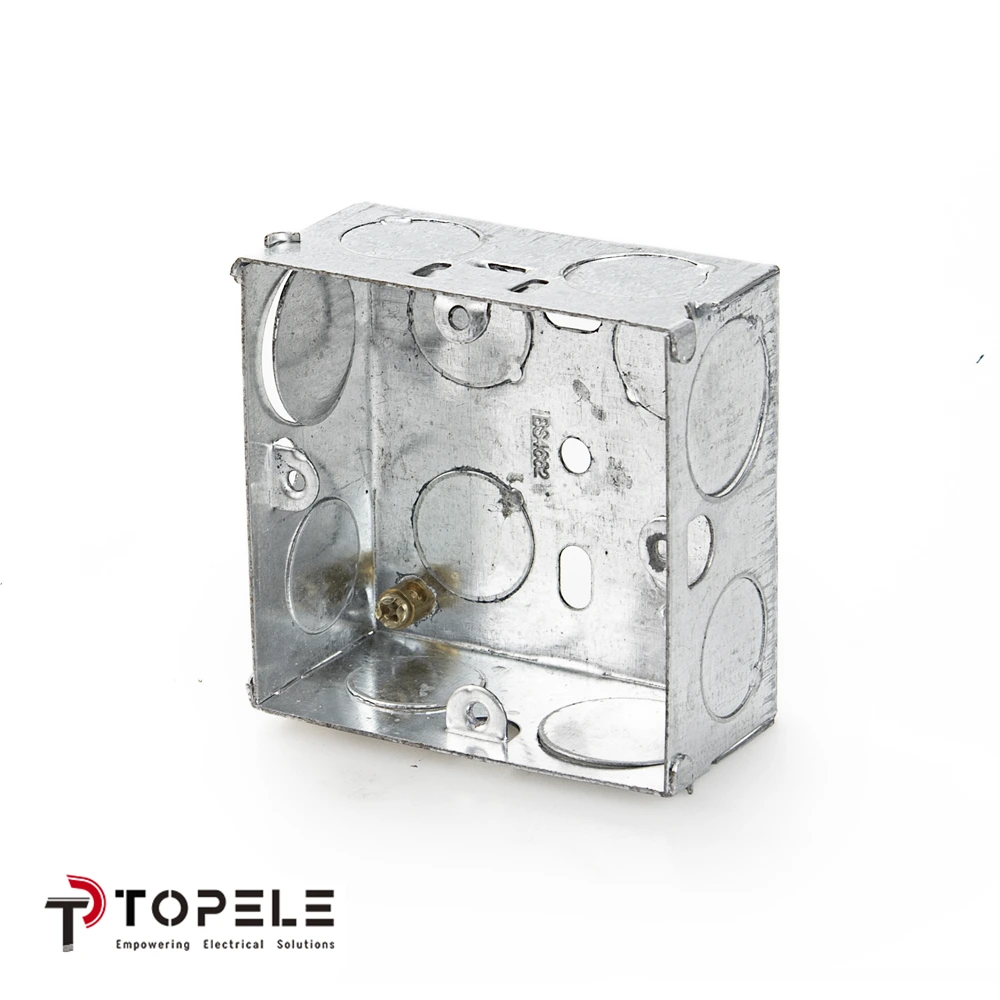

Galvanized Steel 4 Inch Square Conduit Boxes , Outdoor Conduit Box With Knockouts
Description:
TOPELE 4” Electrical Conduit Square Box
•Type: Drawn
•Depth: 2-1/8" or 1-1/2"
•For surface-mounted wiring
•Made of Pre-Galvanized steel
•Thickness: 0.6mm, 0.8mm,1.0mm,1.2mm,1.5mm,1.6mm
•Rectangular box and Octagonal box are also available
•Dimension
4''*4''*1-1/2''Deep 1/2'',3/4'',1/2&3/4''
4''*4''*2-1/8''Deep 1/2'' 3/4'' 1/2''&3/4''
•Thickness:0.6mm,0.8mm, 1.0mm, 1.2mm, 1.5mm,1.6mm
Applications:
TOPELE ELECTRICAL SQUARE CONDUIT BOX
These 4” square boxes with conduit knockouts are installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices. Square boxes are used to bring power to a number of electrical devices where mul-tiple conductor runs are split in two or more directions.
Field Names: 4S Box, 1900 box, 1900 electrical box, 1900 junction box, conduit box, J-box, concentric box, conduit junction box, outlet box, drywall mud box, standard 1900 box, square conduit box.
Specifications:
TOPELE square conduit box
CAT# | KO. SIZE | DESCRIPTION | THICKNESS |
1-1/2'' Deep | |||
TP52151-1/2” | 1/2'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
TP52151-3/4” | 3/4'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
TP52151-1/2”&3/4” | 1/2''&3/4'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
2-1/8'' Deep | |||
TP52171-1/2” | 1/2'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
TP52171-3/4” | 3/4'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
TP52171-1/2”&3/4” | 1/2''&3/4'' | Galvanized Steel | 0.6/0.8/1.0/1.2/1.5/1.6mm |
Las Vegas hardware show -TOPELE ENTERPRISE CO., LTD
Competitive Advantage:
TOPELE 4” Electrical Conduit Square Box
TOPELE 4” Boxes can be surface or flush mounted when multidirectional conduit runs are necessary, These boxes include a raised ground provision.
