Material: | Steel | Type: | Ventilated Or Perforated Trough |
Width: | 5/8", 13/16", 13/32" | Function: | Struct Channel Fitting |
Treatment: | Zinc Coating | ||
High Light: | 13/32" unistrut plate,13/32" unistrut base plate,4 hole unistrut plate |
Detailed Product Description

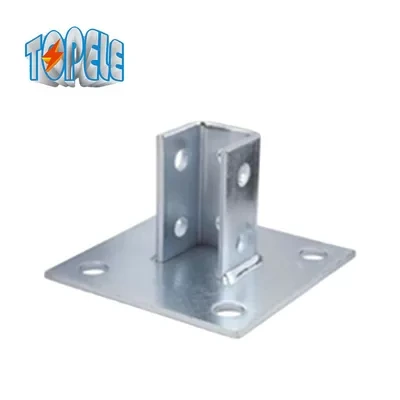

4 hole single channel post base Unistrut Connecting Plate
Material: | Steel | Treatment: | Zinc Coating |
Function: | Struct Channel Fitting | Trade Way: | FOB, CNF, CIF |
Color: | Silver, Grey Or As Order | Place Of Origin: | Zhejiang China( Mainland) |
Type: | Ventilated Or Perforated Trough | Width: | 5/8", 13/16", 13/32" |
Quality: | International Standard |
Description:
4 hole single channel post base Unistrut Connecting Plate
1.Thickness is 6.35mm, hole spacing on center is 47.6mm, hole spacing from end is 20.6mm, width is 40 mm and steel grade is Q235 for all general fittings but special specification.
2.Hole diameter is 11mm for M10 fittings,13mm for M12 fittings but special specification.
3.The series are all manufacture from low-carbon steel with galvanized finish.
4.The series are also available in stainless steel. If you need special application fittings, contact us for size.
4 hole single channel post base Unistrut Connecting Plate
Applications:
4 hole single channel post base Unistrut Connecting Plate
Steel plate Fittings are mainly used to connect the strut channels on the pipe supporting Systems
