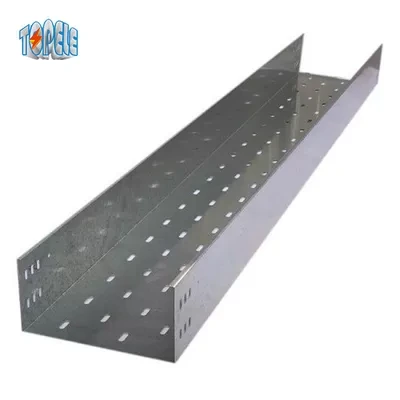

350mm Electro Galvanized Steel Cable Tray

350mm Electro Galvanized Steel Cable Tray
350mm Electro Galvanized Steel Cable Tray

Large Image :  350mm Electro Galvanized Steel Cable Tray

Product Details:

Place of Origin: Zhejiang,China
Brand Name: Topele
Certification: UL
Model Number: TP

Payment & Shipping Terms:

Minimum Order Quantity: 800 PCS
Packaging Details: Small bundle + Pallet
Delivery Time: Negotiate
Payment Terms: L/C, T/T
Supply Ability: 10000 Piece/Pieces per month
Detailed Product Description
Type: Ventilated Or Perforated Trough Material: Steel
Length: 1000mm-3000mm.... Finish: HDG, Powder Coated, Pre-gavanized,electro-galvanized, Plain
Samples: Available
High Light:

350mm galvanized steel cable tray

,

350mm steel cable tray

,

electro galvanized steel cable tray

350mm Galvanized Steel Cable Tray /Light Weight Aluminum Cable Tray





Quick Details

Place of Origin:Zhejiang, China

Brand Name:topele

Model Number:TP

Type:Ventilated or Perforated Trough

Material:Steel

Width:50-800mm.......

Length:1000mm-3000mm....

Side Rail Height:30-500mm...

Max. Working Load:250kg

Item:Cable Tray 350Mm

OEM:available

Trade Type:Manufacture and Export

Finish:HDG, powder coated, pre-gavanized,electro-galvanized, plain

Export range:Cable Ladder,Cable Tray,Cable Trunking

Perforated:perforated or not

Design:Standard or according to your requirements

certificates:CE,SGS

free samples:Available

Raw material:Q235,SS304,SS316,SS316L

Supply Ability:300 Ton/Tons per Month Cable Tray 350Mm

Packaging & Delivery

Packaging Details:

Cable Tray 350Mm packing
Standard export package or according to customers' requirements.

Port:ShangHai,TianJin,Ningbo......CHINA



High Quality Not Perforated Perforated Cable Tray 350Mm



Specification of Cable Tray 350Mm



Size(mm) Thickness(mm) Thickness(mm)
50×25 1.2 1.5
75×50 1.2 1.5
100×50 1.2 1.5
100×75 1.2 1.5
100×100 1.2 1.5
150×50 1.2 1.5
150×75 1.2 1.5
150×100 1.2 1.5
200×100 1.5 2
250×100 1.5 2
300×100 1.5 2
300×150 1.5 2
400×100 1.5 2
400×150 1.5 2
500×100 1.5 2
500×150 1.5 2
600*100 2 2.5
600×150 2 2.5
600×200 2 2.5
700×100 2 2.5
700×150 2 2.5
800×100 2 2.5
800×200 2.5 3
1000×200 2.5 3
1000×250 2.5 3





Material Carbon steel or SS304 or SS316( Q235B Steel,Chinese standard steel)
Surface Treatment HDG(hot dipped galvanized ),Pre-galvanized,Electrical-galvanizing(yellow or white),powder coating(Black,Green,White,Grey,Blue)etc.
Lengths Either 10FT or 20FT or cut into the length according to clients' requirements
Size 50mm*25mm or 100mm*50mm or 500*200mm, 800*200mm,and so on
Thickness 1.2mm, 1.5mm,2mm,2.5mm, 3mm
MOQ 1000 Pieces
Packaging In Bundles and fasten with steel strips or by wooden pallets
Application Intelligent room
IDC equipment room
Cloud computing equipment room



High Quality Not Perforated Perforated Cable Tray 350Mm



Features:

-- Cable Trunking are easy to install and can be mounted on walls using brackets.

-- Used for underfloor, concealed systems.

-- Cable trunking with cover sections to prevent ingress of dust and liquids.

-- cable ladder permits the maximum free flow of air and allows the heat effectively dissipate.

-- the rungs of the cable ladder provide convenient anchors for tying down the cables in different way.

-- cables can be easy to exit or enter through top or bottom of cable ladder.

-- moisture can’t accumulate in cable ladder.

Ventilated cable tray: offers good ventilation to the cable which will accordingly increase the current carrying capacity of the cables.

High Quality Not Perforated Perforated Cable Tray 350Mm
