Product Details:
Payment & Shipping Terms:
|
| Size: | 0.5 Inch-4 Inch | Surface Finished: | Pre-Galvanized Or Hot Dip Galvanized |
|---|---|---|---|
| Material: | Pre-Galvanized Steel,Carbon Steel Coil,Conductors | Application: | Electrical Raceway |
| Product Name: | EMT Conduit Fittings | Standard: | ANSI C80.3 |
| High Light: | liquid tight flexible conduit,electrical conduits and fittings |
||

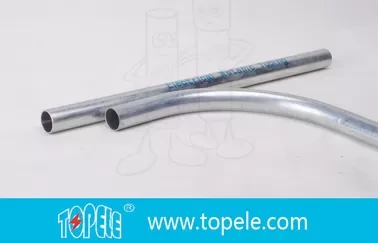

Hot Dip Galvanized EMT Conduit And Fittings Tubing, UL listed round waterproof
Description:
1.Product name : Galvanized steel pip
2.Standard:ANSI C80.3
3.Size : from 1/2” to 4”
4.Length: 3050mm (10 feet) or made up to customer’s requirement
5.Surface finished: Pre-Galvanized or Hot dip galvanized(HDG).
6.Material : Galvanized steel strip
7.Package: all packed in white plastic bag and cover with blue cloth in big bundle.
Applications:
This 1/2 in. x 10 ft. EMT pipe is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT pipe is made of an unthreaded galvanized steel and has an organic coating inside.
An un threaded thin-wall raceway of circular cross-section designed for the phycical protection and routing of conductors and enables for use as an equipment grounding conductor when installed utilizing appropriate fitting.
Specifications:
|
Nominal diameter |
External diameter |
Wall Thickness |
Length |
Packing |
Weight/Unit(kg) |
|
|
1. EMT Tube(Electrical metallic tubing) standard pipe |
|
|
||||
|
1/2" |
17.93mm |
1.07mm |
3.05m |
20pcs/bundle |
1.36 |
|
|
3/4" |
23.42mm |
1.24mm |
3.05m |
15pcs/bundle |
2.07 |
|
|
1" |
29.54mm |
1.45mm |
3.05m |
10pcs/bundle |
3.06 |
|
|
1-1/4" |
38.35mm |
1.60mm |
3.05m |
5pcs/bundle |
4.56 |
|
|
1-1/2" |
44.2mm |
1.65mm |
3.05m |
5pcs/bundle |
5.28 |
|
|
2" |
55.8mm |
1.65mm |
3.05m |
5pcs/bundle |
6.78 |
|
|
2-1/2" |
73.03mm |
1.83mm |
3.05m |
1pcs/bundle |
9.8 |
|
|
3" |
88.9mm |
1.83mm |
3.05m |
1pc |
11.98 |
|
|
3-1/2" |
101.6mm |
2.11mm |
3.05m |
1pc |
15.79 |
|
|
4" |
114.3mm |
2.11mm |
3.05m |
1pc |
17.8 |
|
|
Nominal diameter |
External diameter |
Thickness of wall |
Length |
Packing |
Weight/Unit(kg) |
|
EMT Tube - thin wall thickness pipe |
|
|
|
||
|
1/2" |
17.93mm |
0.85mm |
3.05m |
20pcs/bundle |
1.092 |
|
3/4" |
23.42mm |
1mm |
3.05m |
15pcs/bundle |
1.499 |
|
1" |
29.54mm |
1.1mm |
3.05m |
10pcs/bundle |
2.353 |
|
1-1/4" |
38.35mm |
1.30mm |
3.05m |
5pcs/bundle |
3.623 |
|
1-1/2" |
44.2mm |
1.30mm |
3.05m |
5pcs/bundle |
4.195 |
|
2" |
55.8mm |
1.40mm |
3.05m |
5pcs/bundle |
5.728 |
Competitive Advantage:
+Quick Delivery: 15days for one 20ft container.
+Competitive Price: As we control cost well and we have many demands for steel.
+ Good Quality: ISO certificate approval
+Best Service: Quality gurantee , no rust, no damage, no allowance in weight.
EMT is hot galvanized using a patented inline process. This process combines zinc, a conversion coating, and a clear organic polymer topcoat to form a triple layer of protection against corrosion and abrasion.
EMT combines strength with ductility, providing easy bending, cutting and joining while resisting flattening, kinking and splitting.
