    Product Name: EMT Conduit Fittings Material: Aluminum
    Application: Connecting EMT Conduit / IMC Conduit Type: Unthreaded
    Size: 0.5 Inch-2 Inch Fetures: Electrical Metallic
    High Light:

    explosion proof conduit fittings

    ,

    liquid tight flexible conduit

    0.5 Inch-2Inch Aluminum Clamp Type Service Entrance Caps for EMT Tube conduit fittings

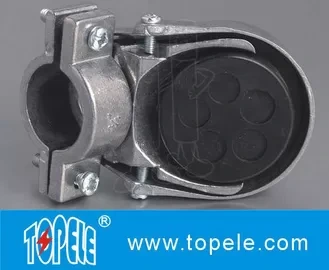

    Service Entrance Cap



    1) Size 1/2" to 2", aluminum die cast
    2) For use to bring overhead electrical service into buildings.
    3) Light-weight aluminum body construction eases installation and provides
    corrosion resistance
    4) Plastic insulator snaps out easily for quick cable insertion
    5) Clamp type and thread type are both available



    Service Entrance Cap

    Aluminum die cast. Indoor or outdoor applications. Use in an overhead service entrance. Mounts on top of E.M.T., Rigid or I.M.C. conduit. Serves as a connecting point for the service entrance wires. UL Listed meets CSA requirements. This Service Entrance Cap is one of many top quality items in our Service Entrance Fittings department..



    Application:



    These service entrance caps attach to the end of plain EMT conduits that are being used to bring over-head

    power to buildings or homes. Their clamp-on design and large insulator yoke allows the cables from meers to be hung outside of service heads without the fear of abrasion while waiting fro the utility power connections. 1/2" to 4" sizes are available.





    Specifications:



    CEC50

    1/2"

    CEC75

    3/4"

    CEC100

    1"

    CEC125

    1-1/4"

    CEC150

    1-1/2"

    CEC200

    2"





    Competitive Advantage:

     +quick delivery

    +competitive price and good quality

    +excellent afer- sales service.

    +fast communication.



    0.5 Inch-2Inch Aluminum Clamp Type Service Entrance Caps for EMT Tube conduit fittings 0 0.5 Inch-2Inch Aluminum Clamp Type Service Entrance Caps for EMT Tube conduit fittings 1
