Product Details:
Payment & Shipping Terms:
|
| Product Name: | Flexible Conduit And Fittings | Material: | Zinc Die-cast |
|---|---|---|---|
| Size: | 3/8”—2” | Field Names: | Liquid Tight Flexible Conduit |
| Type: | 45/90 Degree Type, Straight Type | Color: | Blue Or Yellow |
| Highlight: | flexible metal conduit fittings,corrugated flexible conduit |
||

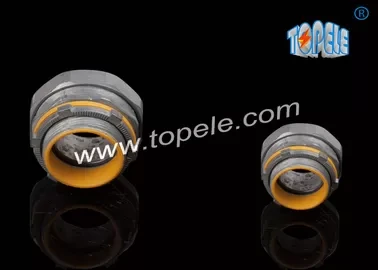

Straight Flexible Conduit And Fittings Liquid Tight Connector
Liquid Tight Flexible conduit –straight type
Material: zinc die cast
Size: 3/8”---4”
Color: Blue or Yellow
Key Word: Seal tight connectors, liquid-tight connectors, watertight connectors, watertight connectors, insulated seal tight connectors, insulated liquid-tight connector.
Application:
These insulated straight connectors are used on flexible metallic liquid-tight conduits and Type-B flexible, nonmetallic, liquid-tight conduits. They are used to positively
bond conduits to boxes or enclosures in both wet and damp locations.
Specifications:
|
LTC-38 |
3/8" |
|
LTC-50 |
1/2" |
|
LTC-75 |
3/4" |
|
LTC-100 |
1" |
|
LTC-125 |
1-1/4" |
|
LTC-150 |
1-1/2" |
|
LTC-200 |
2" |
|
LTC-250 |
2-1/2" |
|
LTC-300 |
3" |
|
LTC-350 |
3-1/2" |
|
LTC-400 |
4" |
Competitive Advantage:
Topele’ straight connectors are designed to slip onto the conduit quickly and to grip the conduit jacket, speeding up installation while ensuring a strong, liquid-tight seal that decreases the risk of pullouts. All components of these connectors can be easily disassembled and reused. Additionally, the included sealing washers provide iquid-tight seals when connectors are terminated in threadless openings. The heavy-duty locknuts included with every Topele liquid-tight connector ensure the continuity of the grounding. Connectors are zinc electroplated for excellent corrosion protection in damp locations.
