Malleable Circular Junction Box One Way BS4568 BS31
| Material: | Malleable Iron | Size: | 20mm 25mm 32mm |
| Shape: | Circular | Finish: | Galvanized |
| Standard: | BS | Product Name: | Terminal Box |
| Business Type: | Factory | ||
| High Light: | Malleable Iron Circular Junction Box,Circular Junction Box Malleable,Malleable One Way Terminal Box |
||

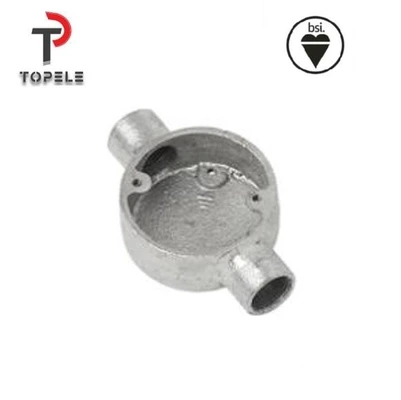

BS4568 BS31 Circular Junction Box Malleable One Way Through Terminal Box
BS4568 BS31 Circular Small Large Gi Conduits And Accessories Two Way Through Terminal Malleable Box Circular Box
Description:
BS4568 circular malleable two way terminal box GI conduit fittings
Brand: TOPELE, as customer request, can open mold as customer own brand.
Material: Malleable Iron
Finish: Galvanized, Aluminum
Standard: BS4568/BS31
Size: 20mm, 25mm, 3/4”, 1”
Note:
1. The base has tapped holes for grounding screws.
2. Covers or fixing screws are not supplied unless ordered.
3. Order 3/4" & 1" when using with BS31 Conduits.
4. Order 20mm,25mm when using with BS4568 Conduits.
5. BS31 boxes also available in cast Iron & finish galvanized coating.
6. Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;
7. Each box is supplied C/W one regulation Tap Earth Terminal Hole in base;
8. Small and large terminal Boxes available;
9. Deep pattern Boxes available;
10. Full range of Conduit Fittings(Saddles) available to suit different site needs;
11. A good range of other supporting catheter fittings is available.
Applications:
BS4568 circular malleable one way terminal box GI conduit fittings
to protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system change.
It allows the wires to be connected to the junction box, storing the excess in the box and providing protection for the wires.
