Material: | Steel | Surface: | Zinc Plated |
Type: | Outside And Inside Threaded | Size: | 3/4"-1/2" To 2'-1 1/2" |
High Light: | imc conduit,explosion proof conduit fittings |

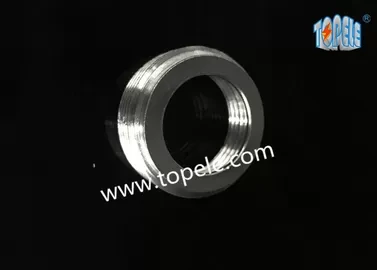

Reducing Bushing Zinc Plated Steel IMC Conduit Fittings , Outside And Inside Threaded Reducer Nipple
Material:Steel
Finishing:Zinc Plated
Size:3/4”-1/2” to 2”-1 1/2”
Field Names: Reducer, reducer bushings, reducing bushings, reducing hub, threaded reducer, pipe reducer, pipe thread converter, pipe adapter bushing.
Application:
These reducing bushings are used with threaded rigid or IMC conduits to reduce the size of female hubs in order to accommodate smaller sized conduits or male threaded hubs.
Specifications:
RDB7550 | 3/4"-1/2 " |
RDB10050 | 1"-1/2" |
RDB10075 | 1"-3/4" |
RDB12550 | 1-1/4"-1/2" |
RDB12575 | 1-1/4"-3/4" |
RDB125100 | 1-1/4"-1" |
RDB15050 | 1-1/2"-1/2" |
RDB15075 | 1-1/2"-3/4" |
RDB150100 | 1-1/2"-1" |
RDB150125 | 1-1/2"-1-1/4" |
RDB20050 | 2"-1/2" |
RDB20075 | 2"-3/4" |
RDB200100 | 2"-1" |
RDB200125 | 2"-1-1/4" |
RDB200150 | 2"-1-1/2" |
Competitive Advantage:
+TOPELE’S rugged, steel construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. Reducing bushings are zinc electroplated for excellent corrosion protection in damp locations.
+Quick Delivery: 30 days for one 20ft container.We are located in hangzhou, which is close to ningbo port and shanghai port, it is convenient for shipping and with cheap shipping cost which will be reflected in the price.
+Competitive Price: high cost performance
+Good Quality: Strict quality control
+Best Service: strong package, timely and effective communication
+Powerful Solution: fast and effective solution to problem
