High Light: | octagon box cover,outlet box covers |

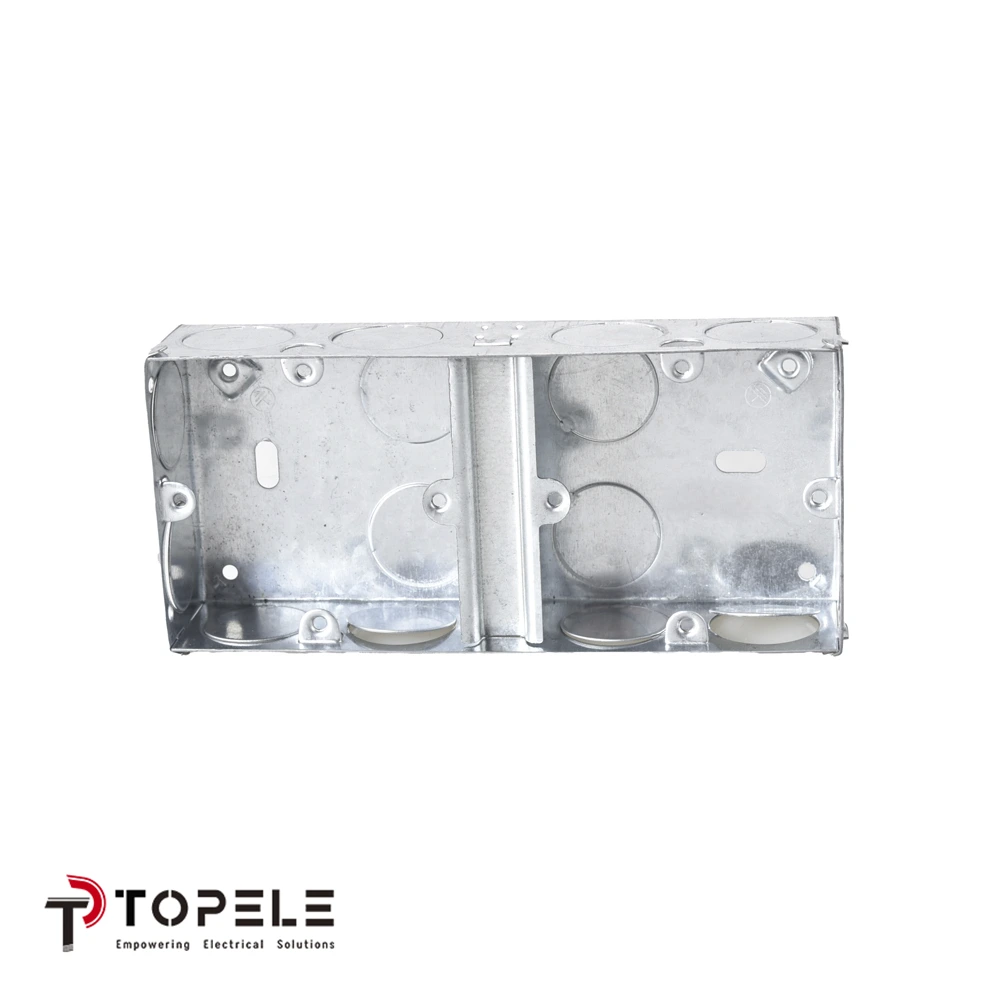

Electrical Boxes / 2-Gang British Standard Metal Conduit Box with PVC , Switch Box
Descrition:
TOPELE 2-Gang British standard Metal Conduit Box with PVC,Switch Box for Saudia
Depth: 35mm
•For surface-mounted wiring
•Made of Pre-Galvanized steel and PVC
•Thickness: 0.8mm,1.0mm,1.2mm
• 1+2 gang,1+1+1 gang, 1+1+2 gang box are also available
Applications:
TOPELE 2-Gang British standard Metal Conduit Box with PVC,Switch Box for Saudia
These topele BS 2-Gang boxes with conduit knockouts are installed in walls or ceilings for lighting fixtures,
switches, receptacles or other outlet devices.
Square boxes are used to bring power to a number of electrical devices where mul-tiple conductor runs are
split in two or more directions.
Field Names: gi box, GI box, one gang box, two gang box, BS conduit box
Specifications:
TOPELE one gang GI box
1)The specification is ((73 x 73 x 35)mm+ (73 x 73x 35)mm (1-GANG+1-GANG ).
2 ) Products can with or without earth screw
3) Products can with adjustable installation lug or fixed installation lug
4) Diameter of knockout holes are 1/2" (20mm) and 3/4" (25mm)
5) We are also able to meet special requirements to produce new products
according to the sample of our clients as well as to offer OEM service
