Product Name: | EMT Conduit Fittings | Material: | Carbon Steel Coil |
Usage: | Electrical Raceway | Type: | Unthreaded |
Size: | 0.5 Inch-4 Inch | Length: | 3050mm (10 Feet) Or According To Customerâs Requirement |
High Light: | liquid tight flexible conduit,electrical conduits and fittings |

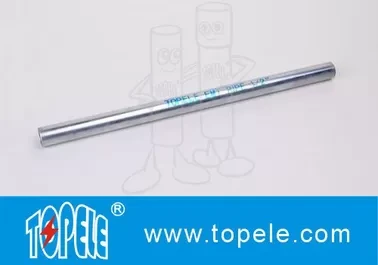

Carbon Steel Galvanized EMT Conduit And Fittings 3 Inch EMT Accessories
Description:
1.Product Name : EMT Pipe
2.Standard: ANSI C80.3
3.Tade Size : From 1/2” to 4”
4.Length: 3050mm (10 feet) or according to customer’s requirement
5.Usage: EMT conduit pass through the electrical wires with the purpose of protection for the electrical raceway system
6.Surface Finished: Pre-Galvanized or Hot dip galvanized(HDG).
7.Material : Carbon Steel Coil
8.Package: EMT conduits tied into small bundles with steel straps, then covers with white plastic bag.
Applications:
This 1/2 in. x 10 ft. EMT pipe is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT pipe is made of an unthreaded galvanized steel and has an organic coating inside.
An un threaded thin-wall raceway of circular cross-section designed for the phycical protection and routing of conductors and enables for use as an equipment grounding conductor when installed utilizing appropriate fitting.
Specifications:
Nominal diameter |
External diameter |
Wall Thickness |
Length |
Packing |
Weight/Unit(kg) |
|
1. EMT Tube(Electrical metallic tubing) standard pipe |
|
|
||||
1/2" |
17.93mm |
1.07mm |
3.05m |
20pcs/bundle |
1.36 |
|
3/4" |
23.42mm |
1.24mm |
3.05m |
15pcs/bundle |
2.07 |
|
1" |
29.54mm |
1.45mm |
3.05m |
10pcs/bundle |
3.06 |
|
1-1/4" |
38.35mm |
1.60mm |
3.05m |
5pcs/bundle |
4.56 |
|
1-1/2" |
44.2mm |
1.65mm |
3.05m |
5pcs/bundle |
5.28 |
|
2" |
55.8mm |
1.65mm |
3.05m |
5pcs/bundle |
6.78 |
|
2-1/2" |
73.03mm |
1.83mm |
3.05m |
1pcs/bundle |
9.8 |
|
3" |
88.9mm |
1.83mm |
3.05m |
1pc |
11.98 |
|
3-1/2" |
101.6mm |
2.11mm |
3.05m |
1pc |
15.79 |
|
4" |
114.3mm |
2.11mm |
3.05m |
1pc |
17.8 |
Nominal diameter |
External diameter |
Thickness of wall |
Length |
Packing |
Weight/Unit(kg) |
EMT Tube - thin wall thickness pipe |
|
|
|
||
1/2" |
17.93mm |
0.85mm |
3.05m |
20pcs/bundle |
1.092 |
3/4" |
23.42mm |
1mm |
3.05m |
15pcs/bundle |
1.499 |
1" |
29.54mm |
1.1mm |
3.05m |
10pcs/bundle |
2.353 |
1-1/4" |
38.35mm |
1.30mm |
3.05m |
5pcs/bundle |
3.623 |
1-1/2" |
44.2mm |
1.30mm |
3.05m |
5pcs/bundle |
4.195 |
2" |
55.8mm |
1.40mm |
3.05m |
5pcs/bundle |
5.728 |
